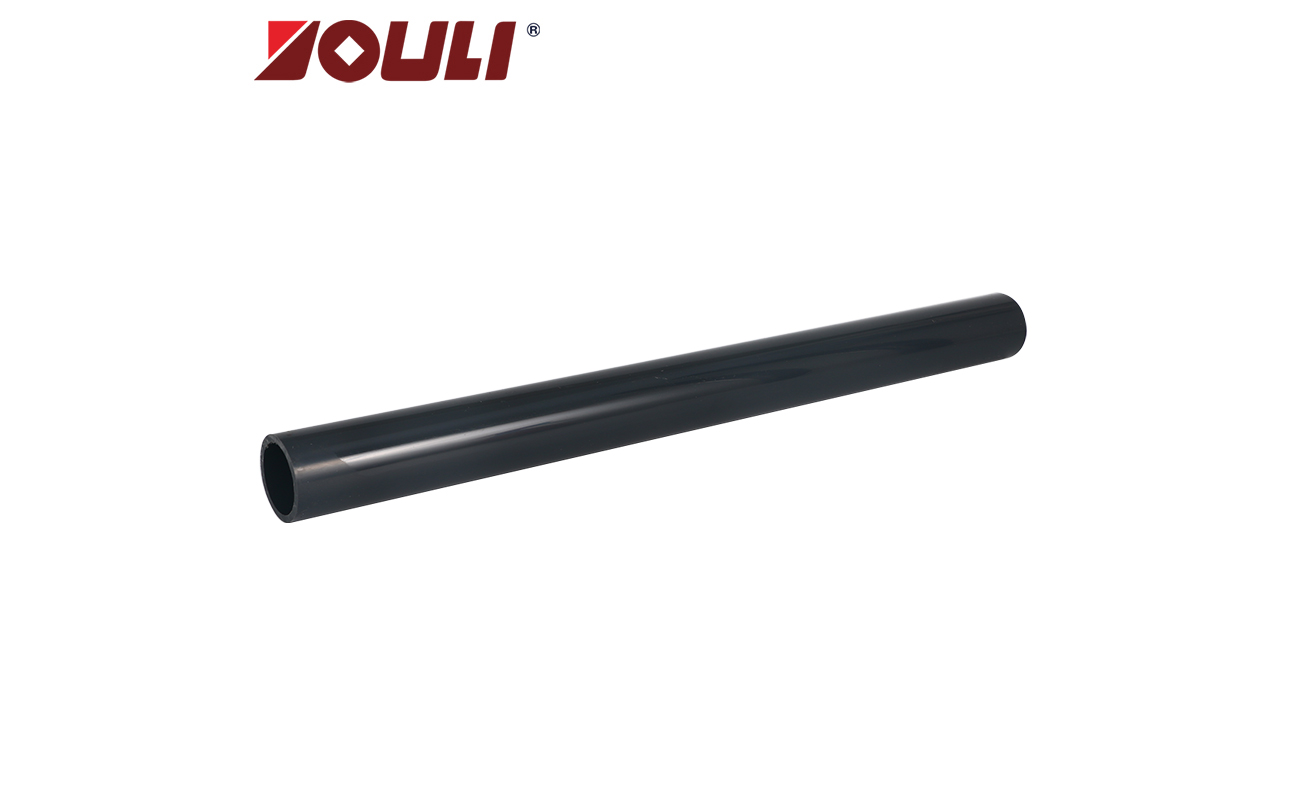

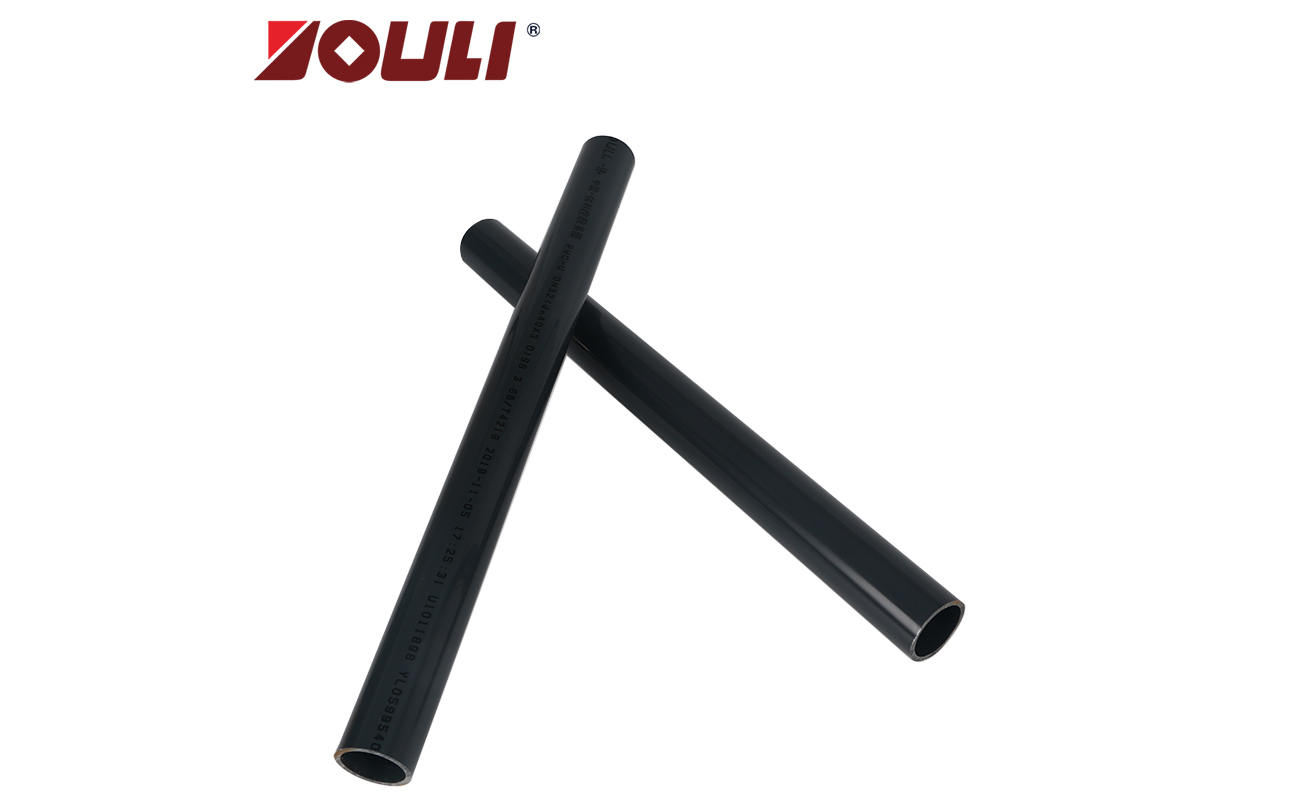

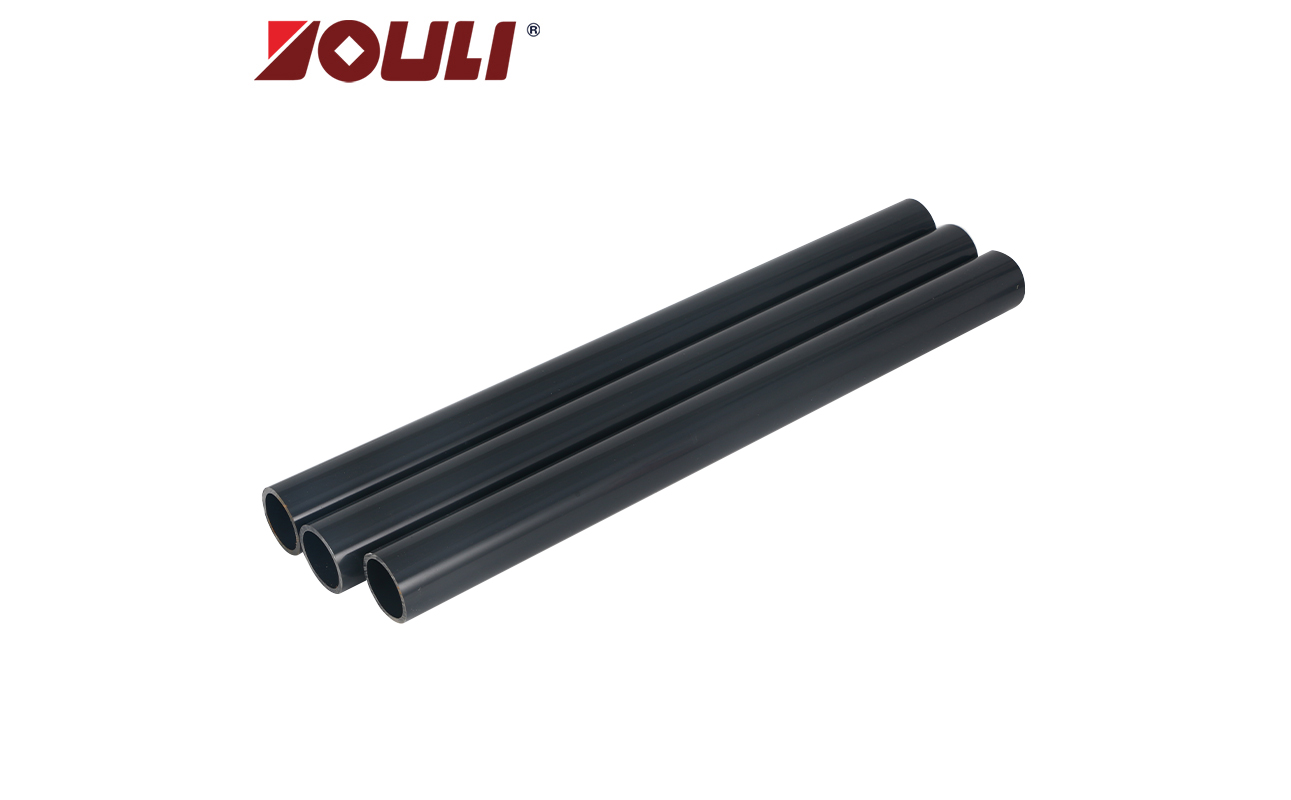

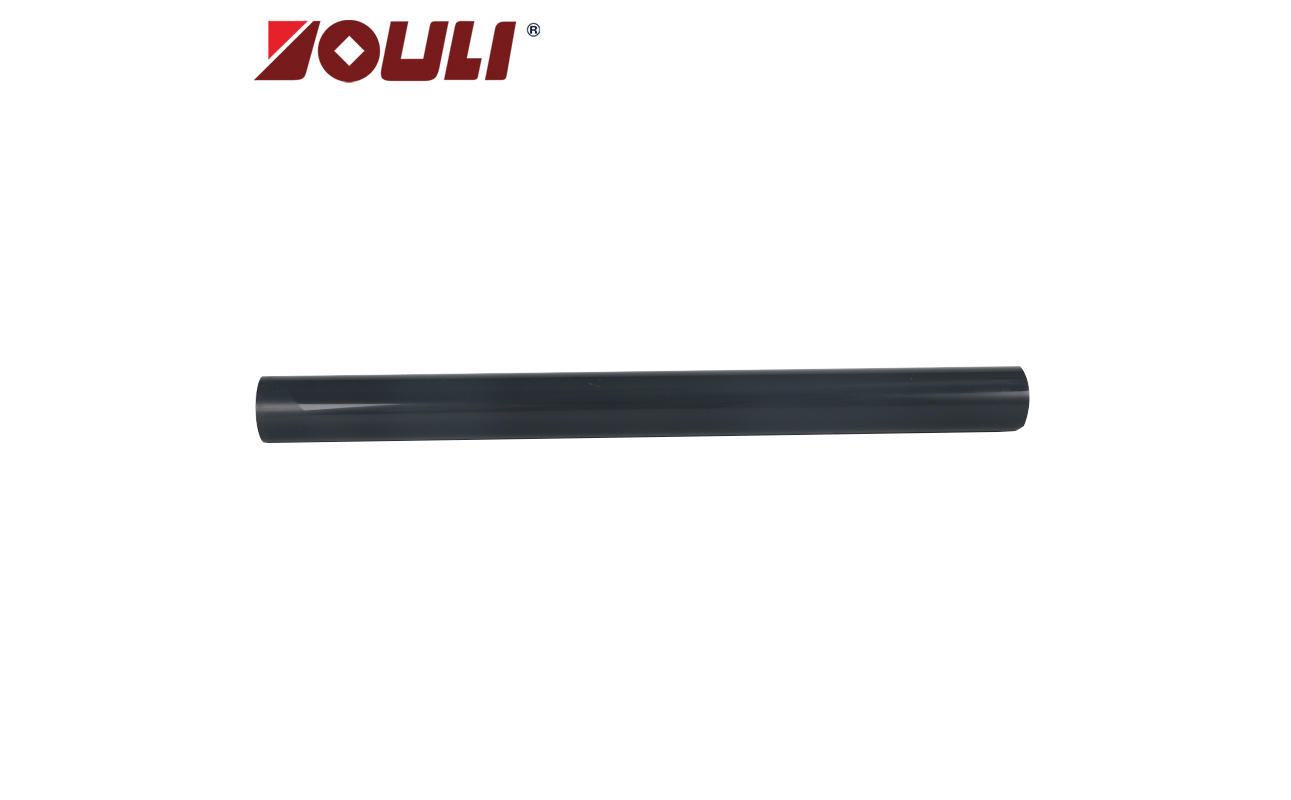

PVC-U pipe

Mall link

Share to:

Previous Next

Product Center

PVC-U Series and size og PVC-U pipe

Size		Water Supply				Industrial
DN	dn	Pressure Rating				Pressure Rating	Wall Thickness	Code	Pressure Rating	Wall Thickness	Code
		1.6MPa	1.0MPa	0.8MPa	0.6MPa
		Wall Thickness
15	20	2.0	-	-	-	1.6MPa/S6.3	2.0	YL 05 99 520	-	-	-
20	25	2.0	-	-	-	1.6MPa/S6.3	2.0	YL 05 99 525	-	-	-
25	32	2.4	-	-	-	1.6MPa/S6.3	2.4	YL 05 99 532	-	-	-
32	40	3.0	2.0	-	-	1.6MPa/S6.3	3.0	YL 05 99 540	1.0MPa/S10	2.0	YL 05 99 040
40	50	3.7	2.4	-	-	1.6MPa/S6.3	3.7	YL 05 99 550	1.0MPa/S10	2.4	YL 05 99 050
50	63	4.7	3.0	-	-	1.6MPa/S6.3	4.7	YL 05 99 563	1.0MPa/S10	3.0	YL 05 99 063
65	75	5.6	3.6	-	-	1.6MPa/S6.3	5.6	YL 05 99 575	1.0MPa/S10	3.6	YL 05 99 075
80	9	6.7	4.3	-	-	1.6MPa/S6.3	6.7	YL 05 99 590	1.0MPa/S10	4.3	YL 05 99 090
100	110	6.6	4.2	-	-	1.6MPa/S6.3	8.1	YL 05 99 610	1.0MPa/S10	5.3	YL 05 99 110
125	140	8.3	5.4	-	-	1.6MPa/S6.3	10.3	YL 05 99 640	1.0MPa/S10	6.7	YL 05 99 140
150	160	9.5	6.2	-	-	1.6MPa/S6.3	11.8	YL 05 99 660	1.0MPa/S10	7.7	YL 05 99 150
175	200	11.9	-	-	-	1.6MPa/S8	11.9	YL 05 99 820	-	-	-
200	225	13.4	8.6	-	-	1.6MPa/S6.3	16.6	YL 05 99 725	1.0MPa/S10	10.8	YL 05 99 225
225	250	14.8	-	-	-	1.6MPa/S8	14.8	YL 05 99 852	-	-	-
250	280	16.6	10.7	-	-	1.6MPa/S6.3	20.6	YL 05 99 780	1.0MPa/S10	13.4	YL 05 99 280
300	315	18.7	12.1	-	-	1.6MPa/S6.3	23.2	YL 05 99 815	1.0MPa/S10	15.0	YL 05 99 315
350	355	-	13.6	-	-	-	-	-	1.0MPa/S10	16.9	YL 05 99 355
400	400	-	15.3	-	-	-	-	-	1.0MPa/S10	19.1	YL 05 99 400
450	450	-	17.2	-	-	-	-	-	1.0MPa/S10	21.5	YL 05 99 450
500	500	-	19.2	-	-	-	-	-	0.8MPa/S12.5	19.2	YL 05 99 500
600	630	-	24.2	-	-	-	-	-	0.8MPa/S12.5	24.2	YL 05 99 630
700	710	-	-	21.6	-	-	-	-	0.6MPa/S16	21.6	YL 05 99 710
800	800	-	-	24.3	-	-	-	-	0.6MPa/S16	24.3	YL 05 99 800
900	900	-	-	-	22.0	-	-	-	0.5MPa/S20	22.0	YL 05 99 900
1000	1000	-	-	-	24.4	-	-	-	0.5MPa/S20	24.4	YL 05 99 000
1100	1100	-	-	-	26.9	-	-	-	0.5MPa/S20	26.9	YL 05 99 002
1200	1200	-	-	-	29.3	-	-	-	0.5MPa/S20	29.3	YL 05 99 001
