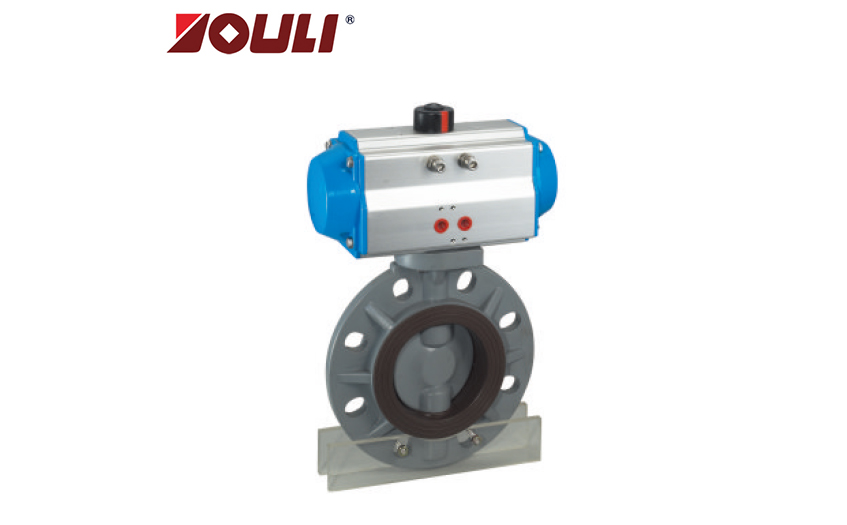

Pneumatic Butterfly Valve

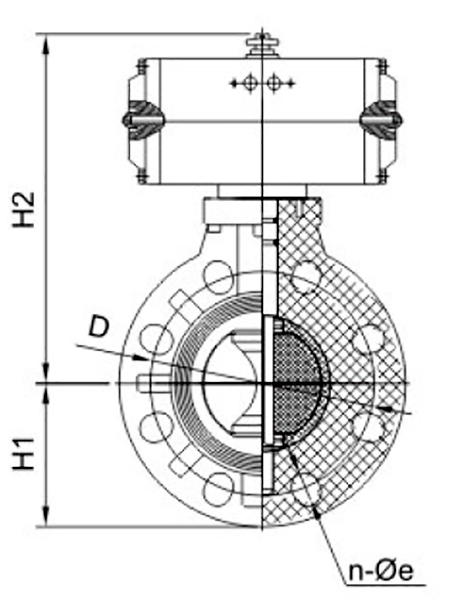

| Size | Pneumatic device model | Dimensions(mm) | ||||
| DN | dn | D | H1 | H2 | n-φe | |
| 50 | 63 | HAT-63D | 125 | 81 | 250 | 4-φ18 |
| 65 | 75 | HAT-63D | 145 | 91 | 258 | 4-φ18 |
| 80 | 90 | HAT-75D | 160 | 98 | 286 | 8-φ18 |
| 100 | 110 | HAT-90D | 180 | 114 | 318 | 8-φ18 |
| 125 | 140 | HAT-90D | 210 | 128 | 338 | 8-φ18 |
| 150 | 160 | HAT-100D | 240 | 144 | 374 | 8-φ22 |
| 200 | 225 | HAT-125D | 295 | 170 | 452 | 8-φ22 |
| 250 | 280 | HAT-145D | 350 | 202.5 | 517 | 12-φ22 |
| 300 | 315 | HAT-190D | 400 | 222.5 | 606 | 12-φ23 |
| 350 | 355 | HAT-210D | 460 | 252.5 | 653 | 16-φ23 |
| 400 | 400 | HAT-240D | 515 | 285 | 746 | 16-φ23 |
