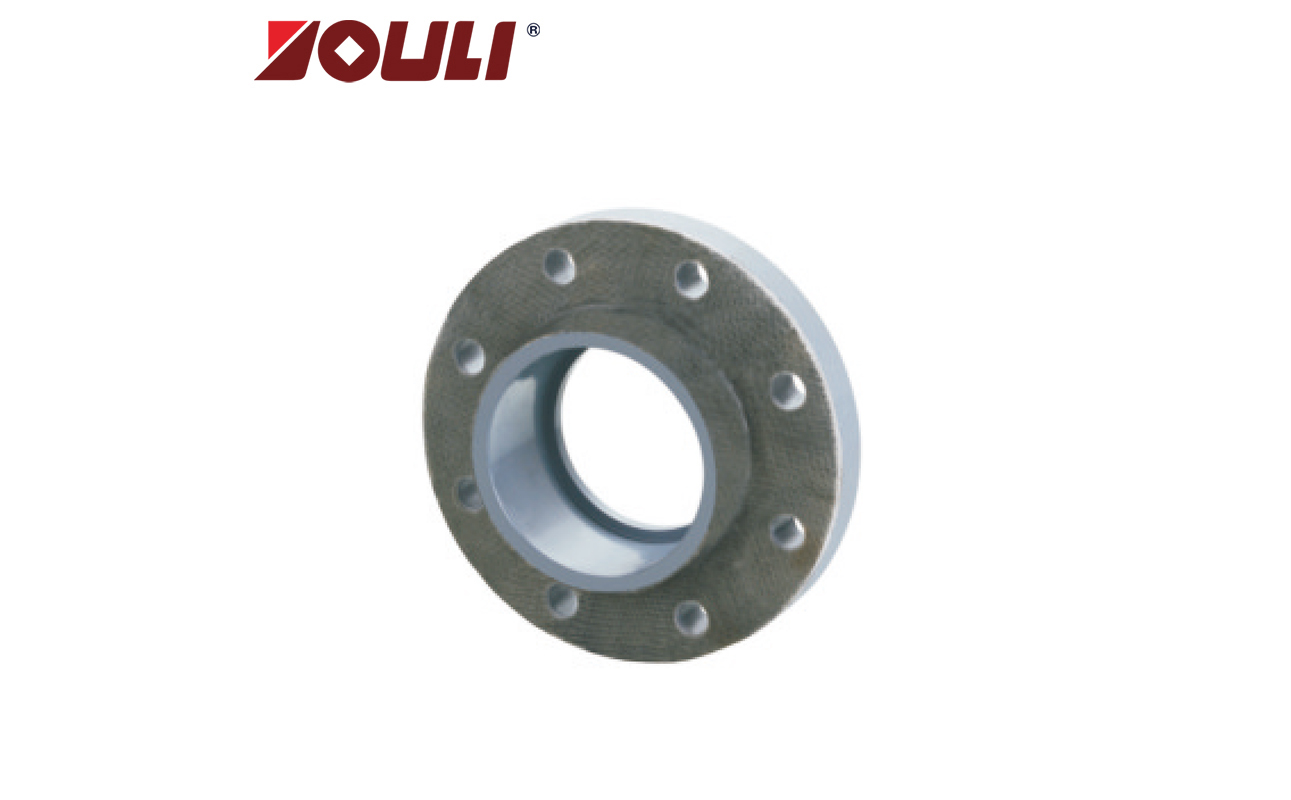

PVC-C/FRP、PVC-U/FRP Composite Flange
| Size | Dimensions（mm） | ||||||||
| DN | dn | D | d | I | D1 | H | t | n-φe | S |
| 15 | 20 | 95 | 20 | 16 | 65 | 20 | 13 | 4-14 | 2.5 |
| 20 | 25 | 105 | 25 | 19 | 75 | 23 | 17 | 4-14 | 2.5 |
| 25 | 32 | 115 | 32 | 22 | 85 | 27 | 18 | 4-14 | 2.5 |
| 32 | 40 | 140 | 40 | 26 | 100 | 30 | 20 | 4-18 | 2.5 |
| 40 | 50 | 150 | 50 | 31 | 110 | 36 | 20 | 4-18 | 2.5 |
| 50 | 63 | 165 | 63 | 38 | 125 | 42 | 24 | 4-18 | 2.5 |
| 65 | 75 | 185 | 75 | 44 | 145 | 51 | 24 | 4-18 | 2.5 |
| 80 | 90 | 200 | 90 | 51 | 160 | 58 | 26 | 8-18 | 2.5 |
| 100 | 110 | 220 | 110 | 61 | 180 | 66 | 27 | 8-18 | 2.5 |
| 125 | 140 | 250 | 140 | 76 | 210 | 86 | 28 | 8-18 | 2.5 |
| 150 | 160 | 285 | 160 | 86 | 240 | 95 | 29 | 8-22 | 2.5 |
| 200 | 225 | 340 | 225 | 119 | 295 | 128 | 30 | 8-22 | 2.5 |
| 250 | 280 | 395 | 280 | 146 | 350 | 157 | 30 | 12-22 | 2.5 |
| 300 | 315 | 445 | 315 | 164 | 400 | 172.5 | 31 | 12-22 | 3.0 |
| *350 | 355 | 532 | 355 | 185 | 460 | 200 | 43 | 16-22 | 5.0 |
| *400 | 400 | 568 | 400 | 206.5 | 515 | 232 | 45 | 16-26 | 5.0 |
| *450 | 450 | 615 | 450 | 231 | 565 | 251 | 45 | 20-26 | 5.0 |
| *500 | 500 | 670 | 500 | 256 | 620 | 280 | 50 | 20-26 | 5.0 |
| *600 | 600 | 780 | 600 | 290 | 725 | 320 | 47 | 20-30 | 5.0 |
| *600 | 630 | 780 | 630 | 330 | 725 | 460 | 47 | 20-30 | 5.0 |
| *700 | 710 | 895 | 710 | 420 | 840 | 540 | 44 | 24-30 | 5.0 |
| *800 | 800 | 1015 | 800 | 440 | 950 | 570 | 40 | 24-33 | 5.0 |
| *900 | 900 | 1115 | 900 | 450 | 1050 | 580 | 40 | 28-33 | 5.0 |
| *1000 | 1000 | 1230 | 1000 | 480 | 1160 | 640 | 40 | 28-36 | 5.0 |
| *1100 | 1100 | 1340 | 1100 | 480 | 1270 | 690 | 40 | 28-36 | 5.0 |
| *1200 | 1200 | 1455 | 1200 | 480 | 1380 | 740 | 40 | 32-39 | 5.0 |
